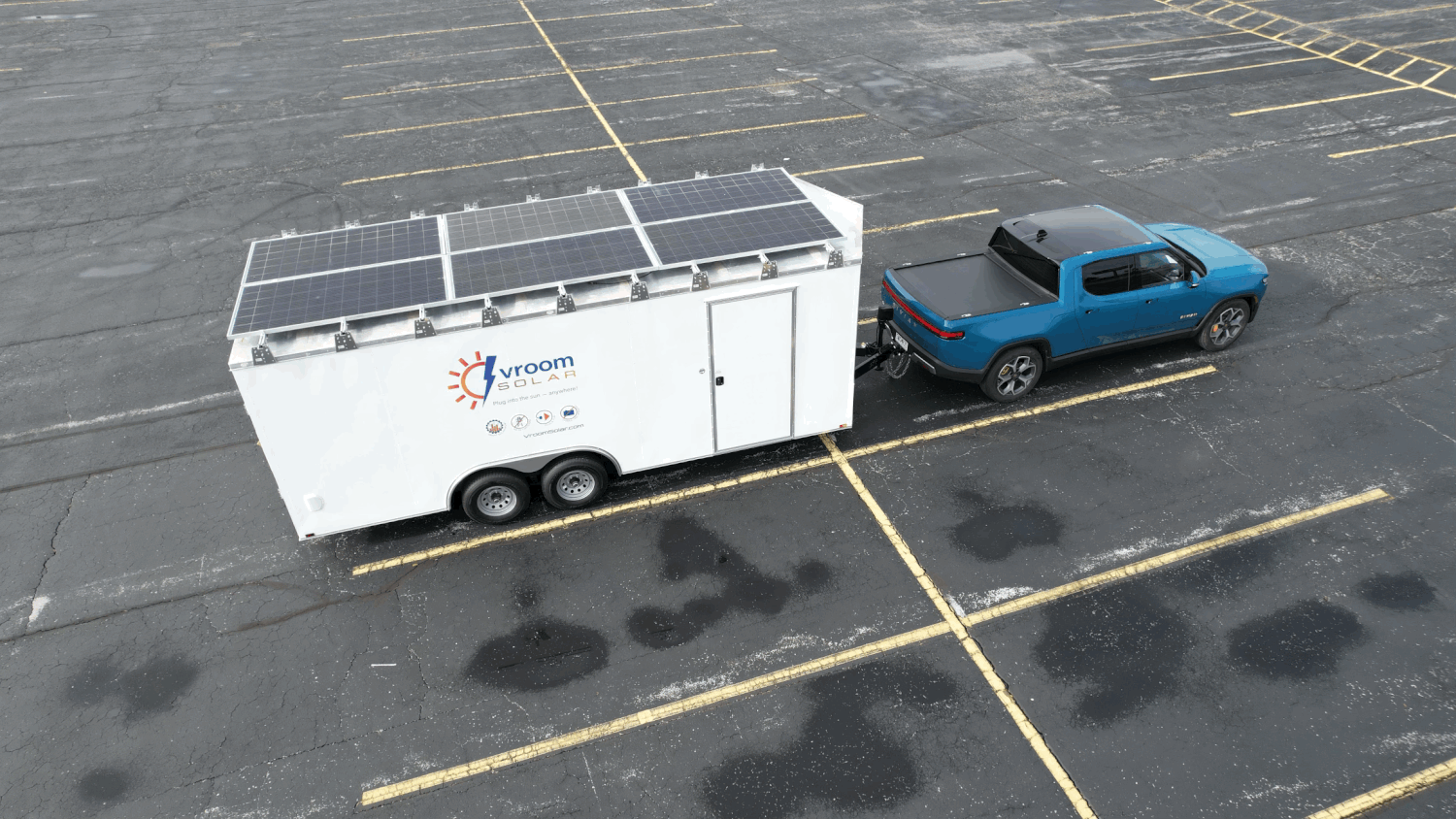

Vroom Power 6-Rail Vroom Rack™ for Cargo Trailers - (6) x 94” rails for 4 panels (solar panels and connecting cables/accessories not included)

Model #SLVRACK6R-TRLR - Finally! An adjustable cargo trailer rack designed, USA-built, and tested specifically for roof-top solar panel mounting... with no roof-penetration required.

Designed for Solar Panel Mounting – Built for commercial-grade solar modules and adaptable to panels up to 45” wide. Vroom Solar recommends high-quality, heavy- duty, USA-built Crossroads Solar modules; engineered for highway usage with a 10-year warranty. Our patent-pending rack design has been fully wind-tested with Crossroads Solar heavy-duty solar modules for high-speed mobile applications and is stronger than other rack options because of its 3-rail design.

Adjustable Height and Width – Rack adjusts to attach to the support infrastructure on the sides of the trailer, so no holes in your trailer roof. Fits trailer widths from 84” to 102”; (3) mounting height options available, so solar modules can be mounted 2-5” above the trailer roof to mitigate heat build-up and facilitate maximum solar energy capture from bi-facial solar panels.

Easier, Faster Installation – Our adaptable, adjustable racking solution is designed to install easily into the side support frames of most existing cargo trailer types in under two hours; no roof penetration required.

UL 2703 Grounding Certification – Rack is UL 2703 compliant pending full UL certification; grounding & bonding requirements are included in this certification.

Testing - The Vroom Rack™ for Cargo Trailers has been field-tested and approved for durability under normal operating conditions consistent with proper installation as described in the Owner’s Manual.

All Vroom Power Racks™ include a 24-month parts and product warranty.

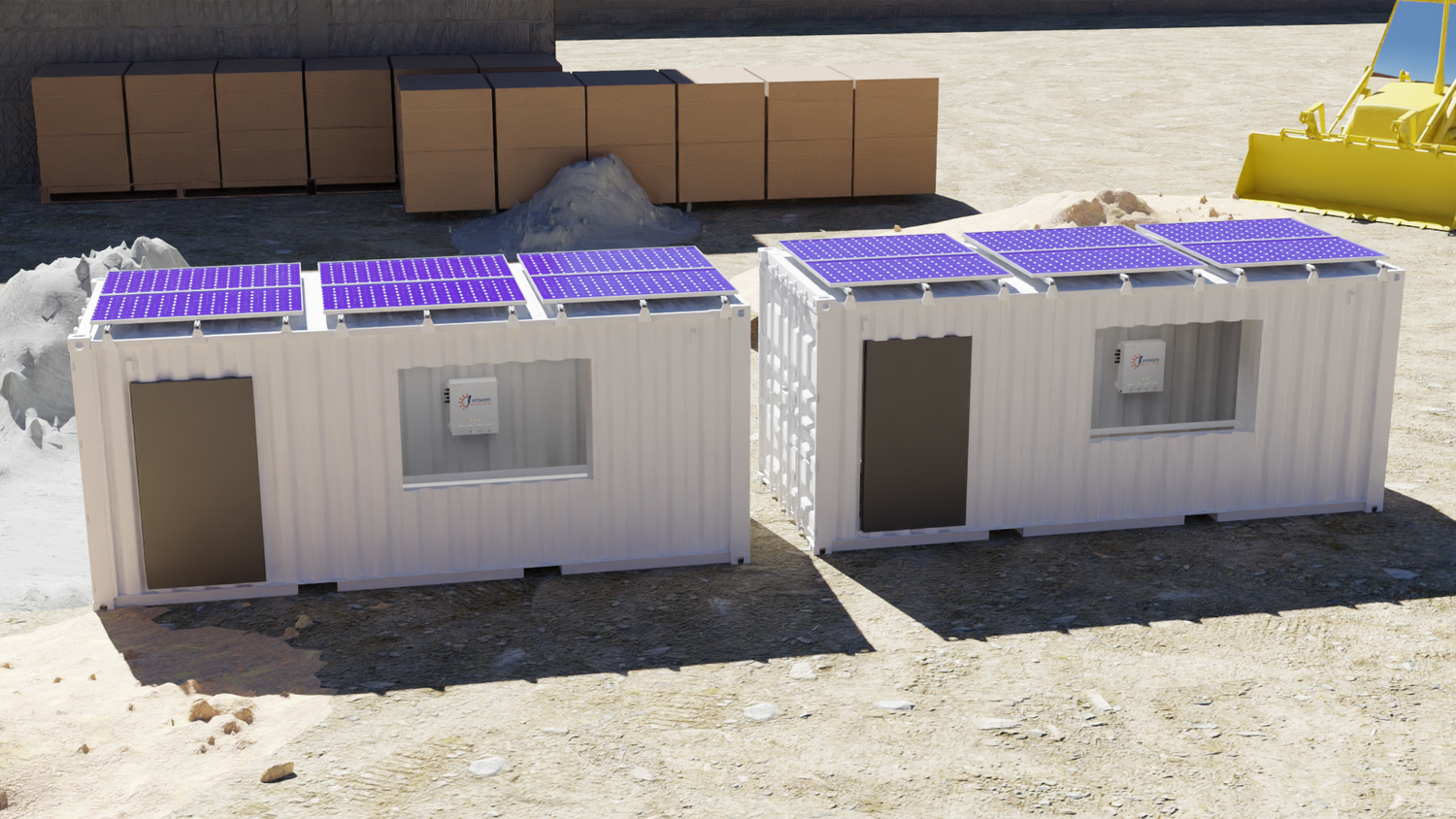

Applications

What’s in the box?

Box 1 of 2 | Rails | 6” x 4” x 96”, approx. weight = 50 lbs

• (1) Vroom Rack™ for Cargo Trailers with (2) 3-rail racks (6 total rails, 94” each) built for commercial-grade solar modules and featuring up to 90” of available solar panel space on the rails.  Adaptable to panels up to 45” wide, and 30-40mm thickness. Fits trailer widths from 84” to 102” (mounts up to (4) total solar modules on (6) rails depending on panel width).

  • Vroom Rack™ rail parts are made of 3003 or equivalent aluminum; parts are NOT powder-coated.

  • Solar Panels and Connecting Cables are NOT INCLUDED.

  • SKU | 000105

Box 2 of 2 | Hardware | 12” x 12” x 6”, approx. weight = 20 lbs

• Complete rack mounting hardware, enough to mount up to (4) total solar modules ((4) sealed hardware bags)

  • (18) mid-clamps and (12) end-clamp height-adjustment legs (Advanced Clamp Leg)

  • (12) Mounting Triangles | (12) Channel Brackets

  • (12) ¼” spacers

  • 5/16” Carriage bolts, Star Washers, and NyLock Nuts – Qty. (36) each, (3) bags

  • (24) 20mm SHORT T-Bolts w/rectangular head and Serrated Flange nut, (3) bags of (8) each

  • (36) ¼” x 1 ½” hex-head self-tapping screws, (4) bags of (10) | Butyl Sealing Tape

  • Hardware package includes card w/QR Code for Owner’s Manual/Installation video

  • Vroom Rack™ mounting parts are made of 3003 or equivalent aluminum
